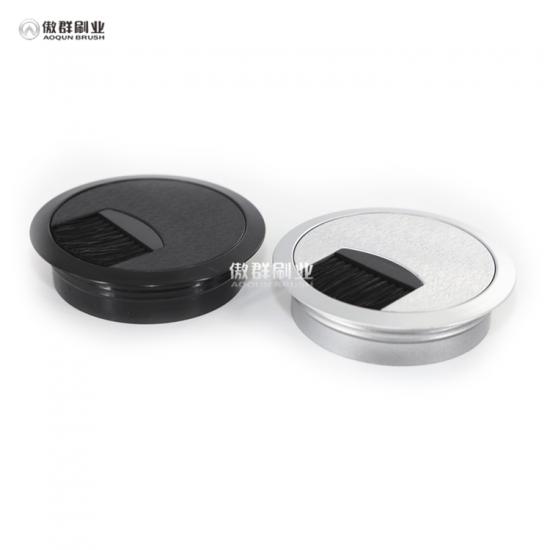

Desk Table Round Brush Grommet Circular Cable Entry Brush Seal
The round brush grommet provides a clean, organized cable entry method when mounted any work surface. Features a built-in table socket cable management tray and fits in openings on all kind of furniture.
What's the features of the round brush grommet?
1.Endless options make it easy to find a perfect fit
2.Keeps your data cables together to prevent tangling and disorganization
3.Protect the moving parts of seating/standing desk from dust
4.Provides clean round brush grommet while prevent dust entry
5.Ideal for mounting above work surfaces
6.Can be made by UL94 Flame Retardant filament material
Ⅰ. Product Description
1-Aluminum Profile
Anodizing surface treatment, various colors for oxidation or paint treatment
2-PA6/PA66
Good elasticity, wear resistance, temperature resistance, the thermal denaturation temperature is 185~190°C, which can be added UL94 V0 flame retardant material
3-Smooth, Neat, Clean
The Table Grommet brush filament is glossy with uniform thickness. It is neat without crooked and oblique filament, without oil, dust, rust in the surface.
4-Grind the sharp edge, no slip away
Grind each sharp edge of the brush base to avoid injury, the door bottom automatic seal will not slip away for its own weight after installation
5-Individually developed flame-retardant filament
AOQUN table socket brush strip extinguishes right after being taken away from fire with white smoke, without pungent smell, and complies with RoHS 10 items. Our table socket is safe, non-toxic and environmentally friendly
Ⅱ. Brush Specifications
Specification
|
Product Name
|
Desk Table Round Brush Grommet Circular Cable Entry Brush Seal
|
Brush Material
|
PA, PP
|
Brush Color
|
Black,Bronzed,Brown,Champagne,Coffee,Golden Yellow,Silvery,White,etc.
|
Holder Material
|
Aluminum, Plastic (PVC,TPV,TPE,EPDM)
|
Holder Shape
|
Rectangle or Round Shape
|
Certificate
|
ISO9001, RoHS, SVHC, UL94
|
Application
|
Grommet Brush for Server Rack Cabinet/Raised Access Floor/Technical Furniture/Letter Plate Brush/Wall Plate Brush, etc.
|
MOQ
|
1000 Pieces
|
Model
|
Specification(mm)
|
Material
|
Brush Filament
|
Damping
|
GB-01
|
80*80
|
Aluminium Alloy
|
Black Straight PP
|
No
|
GB-02
|
80*160
|
Aluminium Alloy
|
Black Straight PP
|
No
|
GB-03
|
80*280
|
Aluminium Alloy
|
Black Straight PP
|
No
|
GB-04
|
128*300
|
Zinc Alloy
|
Black Straight PP
|
No
|
GB-05
|
128*400
|
Zinc Alloy
|
Black Straight PP
|
No
|
GB-06
|
128*300
|
Zinc Alloy
|
Black Straight PP
|
Yes
|
GB-09
|
Φ60
|
Aluminium Alloy
|
Black Straight PP
|
Yes
|
Ⅲ.Brush Applications
